china factory wholesaler alibaba supplier p5 outdoor rental led display for event
- Product No.：201986205534

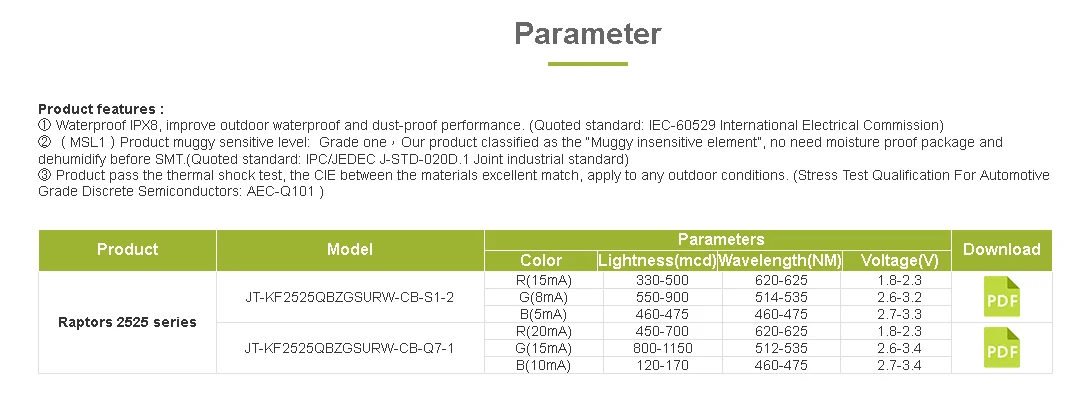

kinglight/nationstar LED lamp

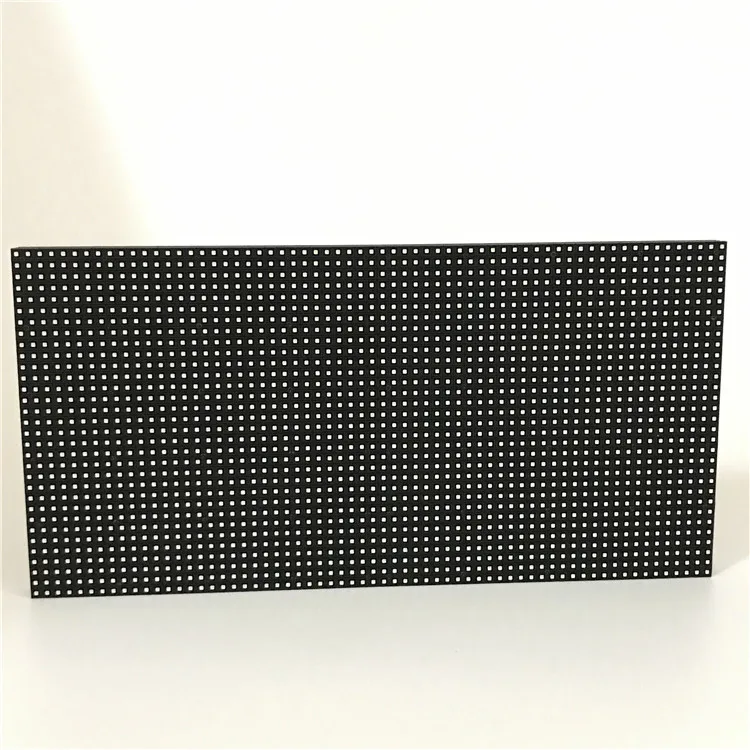

| LED module | |||
| Pixel pitch(mm) | 5mm | ||
| Module size(W×H) | 320mmX160mm | ||
| Pixel configuration | SMD2525 | ||
| Module resolution(W×H) | 64dots ×32dots | ||
| Module pixels | 2048dots | ||

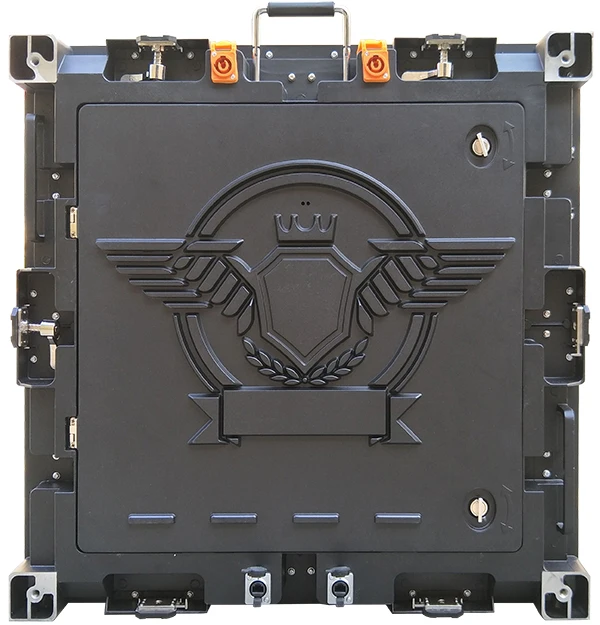

| LED cabinet | ||||

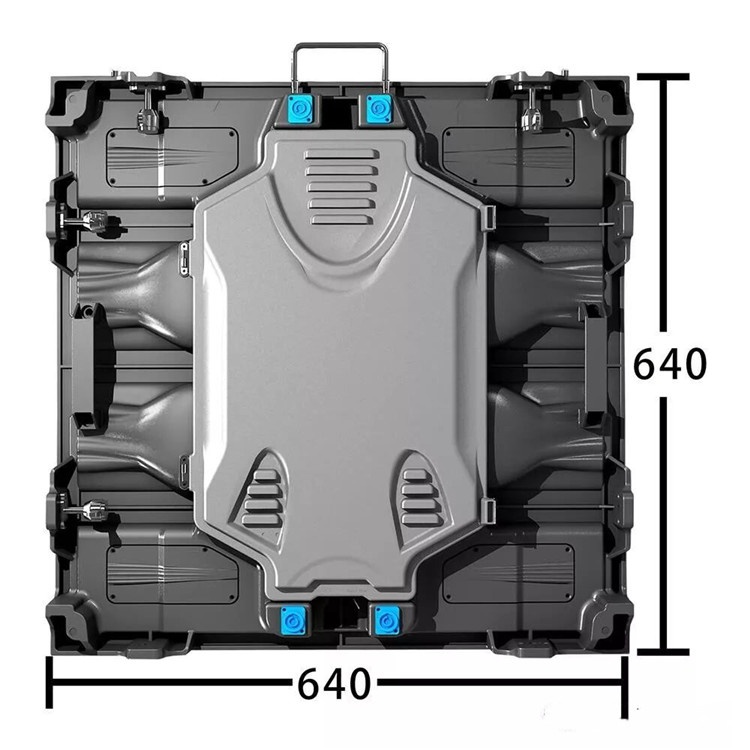

| Cabinet size(WxHxD) | 640mm×640mm | |||
| Cabinet resolution | 128dots×128dots | |||
| Cabinet pixels | 16384dots | |||
| Driving method | 1/8 scan, constant current | |||
| Weight(kg/pcs) | 8kg/pcs | |||
| Material | die casting aluminum cabinet | |||

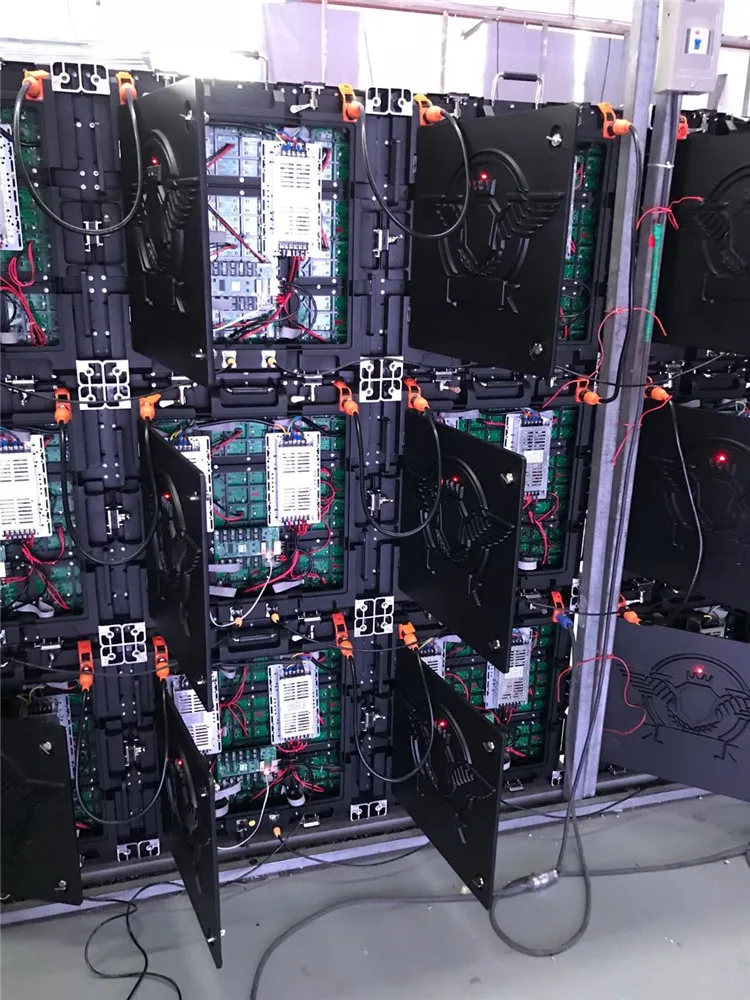

| Included | 1. E-energy/Meanwell Power supplies | |||
| 2. Fans | ||||
| 3.MBI5124IC/ ICN2153high refresh | ||||
| 4. Mounting/locking plates between cabinets | ||||

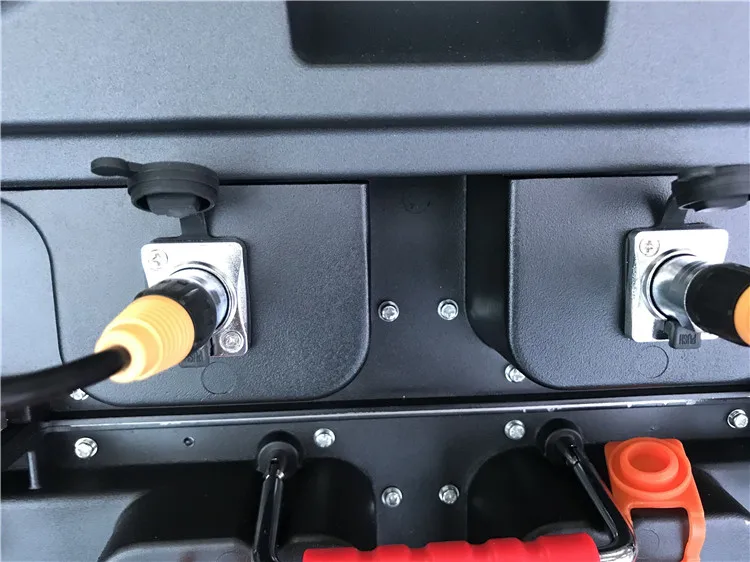

| 5. Inter-connecting cables & ribbons (both power and signal) | ||||
| Working voltage | 110/220V 50Hz-60Hz | ||
| Average power consumption | 500W/m² | ||
| Max power consumption | 900 W/m² | ||
| Brightness | >6000 nits (cd/m²) | ||
| Gray level | 65,536 levels | ||
| Refresh rate | > 1920 Hz/3840hz | ||
| Viewing angle | 150º/150º | ||
| best Viewing distance | 5m-100m | ||
| Frame rate | > 60 frames/sec | ||
| Defects rate | ≤0.00001 | ||
| Available color palette | 4.4 Trillion colors (RGB 14 bit control) | ||
| MTBF | > 10,000hours | ||
| Life-span | > 100,000 hours | ||
| Protective Grade | IP65 | ||
| Working temperature | -20℃ ~ +60℃ | ||
| Operating humidity | 10%~90% | ||
| Control system | |||
| Software | Nova/linsn/mooncell/colorlight | ||
| PC system | Windows (2000/XP/Vista/win7) | ||
| Control distance | Within 100m adopts UTP netcable; 100m~500m adopts Multi-mode Fiber; 500m~10000m adopts Single-mode Fiber (distance between PC and screp ledn) |
||
| Control method | Maincontroller + off-line control card | ||
| Display format | All format ( AVI.MPEG.VOB.RM ect) | ||
| Brightness control | Manual or Automatic Control | ||
| Video input | All video signal ( S-VHS, DVD, TV, Satellite, Color- Camera, PC-VGA) | ||
Product Highlight:
1. Ultra-light one case weight is 40% lighter than die-cast aluminum case
2. High refresh rate: 3840HZ
3.ultra-thin one due to the high strength of magnesium alloy, in the design can be thinner than aluminum, thin about 30%
4. High precision, one box is processed by CNC, the precision is higher, and it can be seamlessly spliced.
5, the installation is fast and a special fast lock, the installation takes only 20 seconds
6.Energy saving: energy saving IC ,power saving more than 40%
