p5 DJ booth led display for show

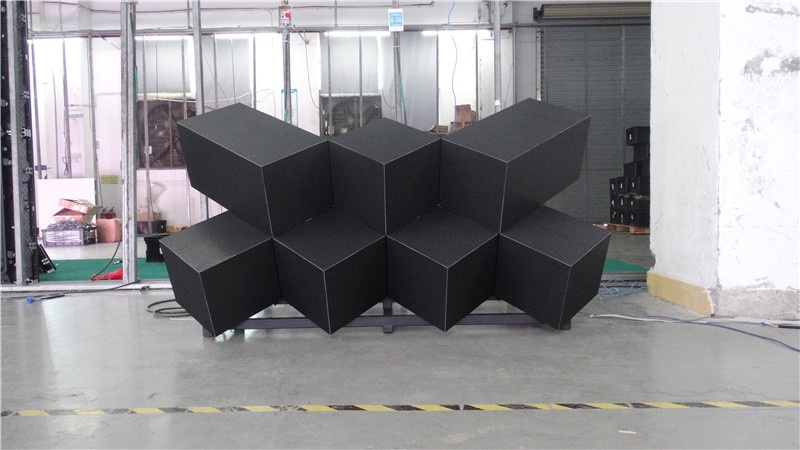

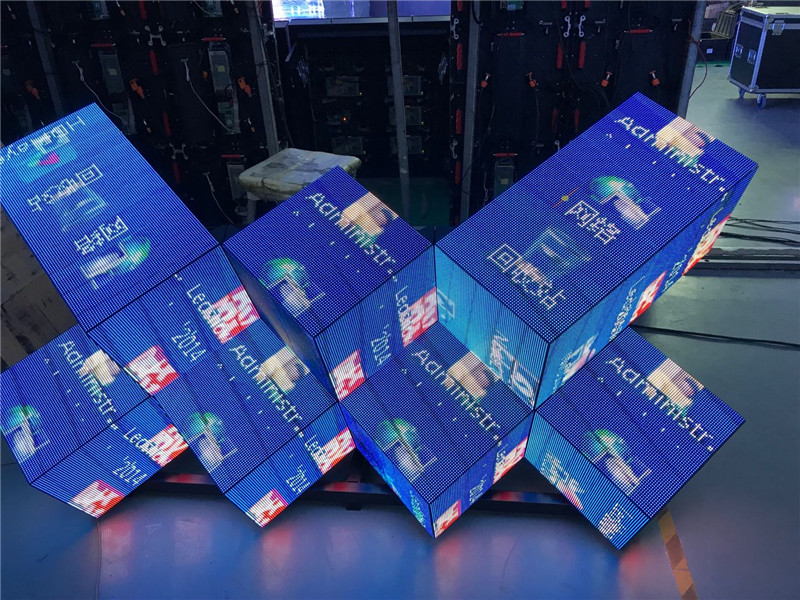

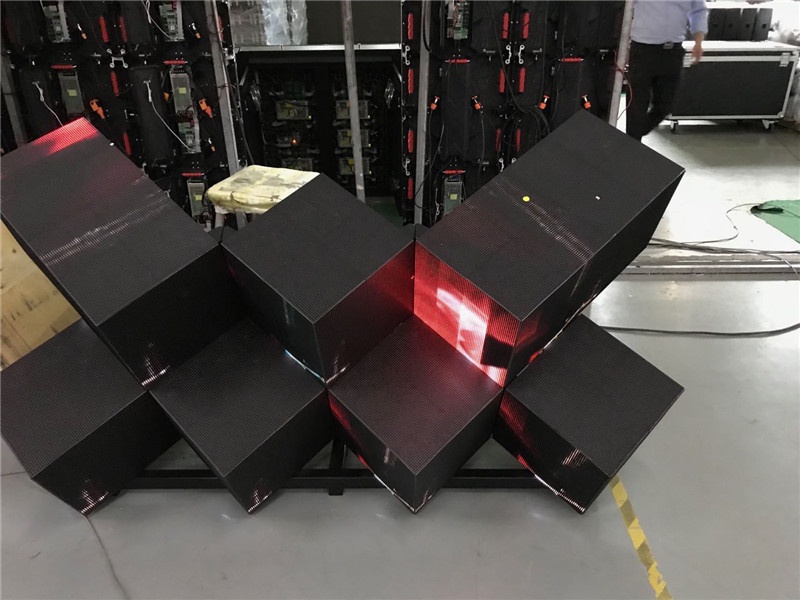

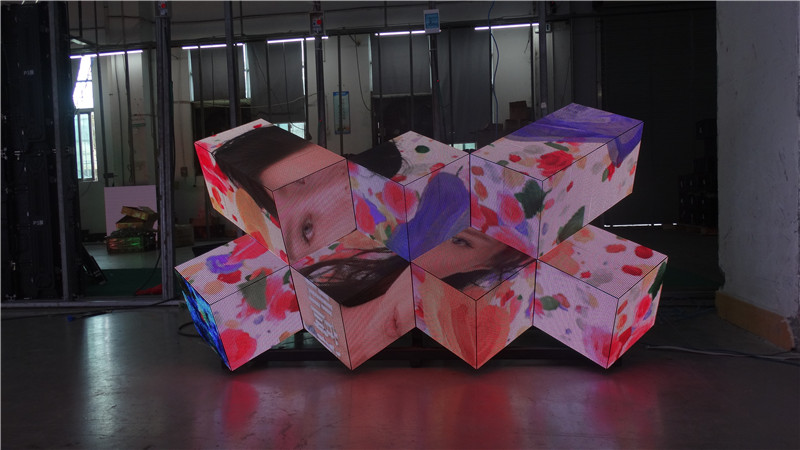

p5 DJ booth led display

P5-32S Main technical parameters of indoor LED display
Physical pixel:5㎜	module size:320X160㎜	cabinet size:320×320（mm）
physical dots:40000dots/㎡	1R1G1B	module resolution64*32=2048DOTS
module weight - 0.27kg
cabient resolution 643225side	cabient space2.56m²	cabinet weight 3.8KG±0.05KG
The main technical parameters
best view distance:5m～40m	Visual angle level≧160°optionl	vertical≥140°optional
Ave power consumption＜400W/㎡	Max power consumption＜800w/㎡	Control method: synchronous control
DVI	Drive mode：1/32scan	Change frequency ≧60Hz
refresh≧1920Hz optional	brightness ≧1000cd/㎡	Frame change frequency≧50/60
brightness adjust	Drive IC：ICN2053/MBI5124	16degree adjust
Software manual adjustment: 100 adjustable 100
computer
WIN98、WINXP、WIN2000,etc
video singal
RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION etc
control system
PCTV card (optional optional) + DVI graphics card + main control card + fiber transmission (optional optional)
Mean time between failures ≧5000小时	span life75000～100000hours	Pixel out of control rate ＜0.0002 pcs
PH3	SMD	SMD2121
