p2 indoor full color rental led video wall

P2-32S Main technical parameters of indoor LED display

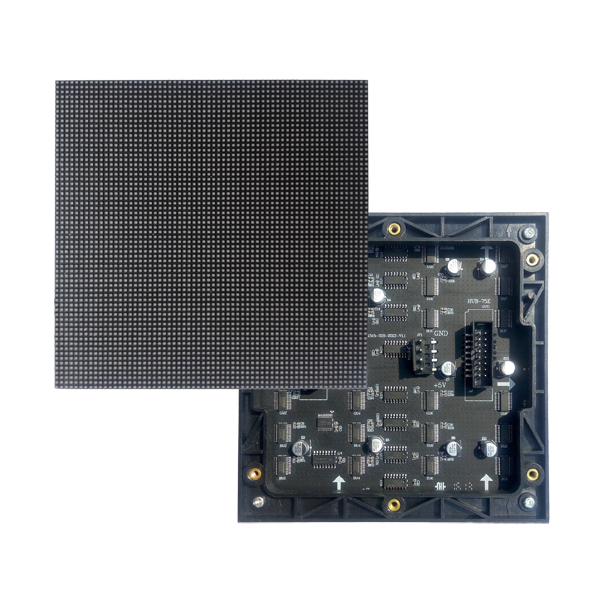

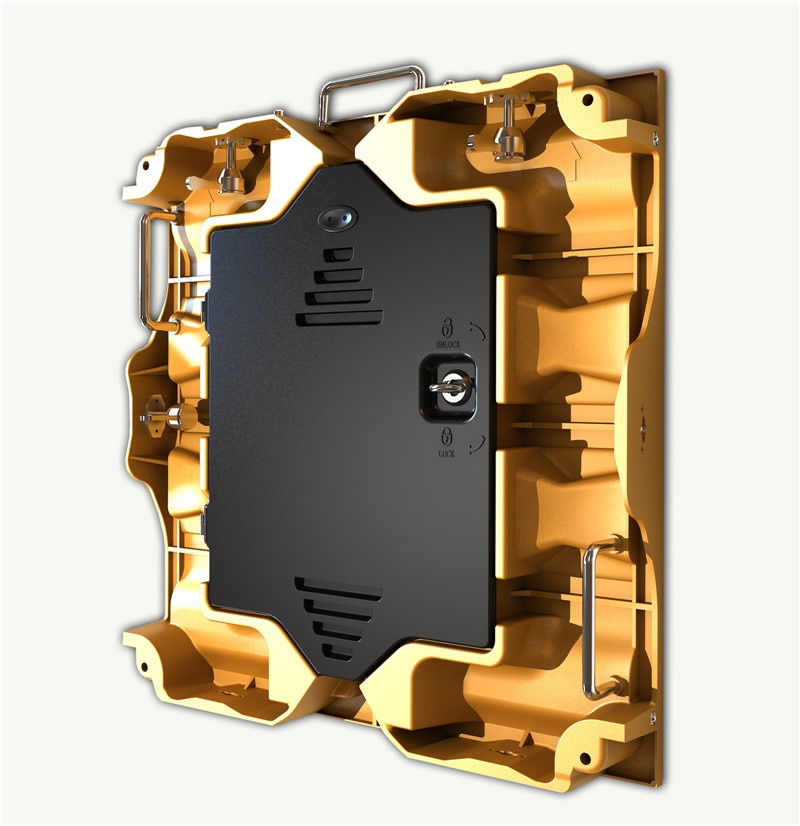

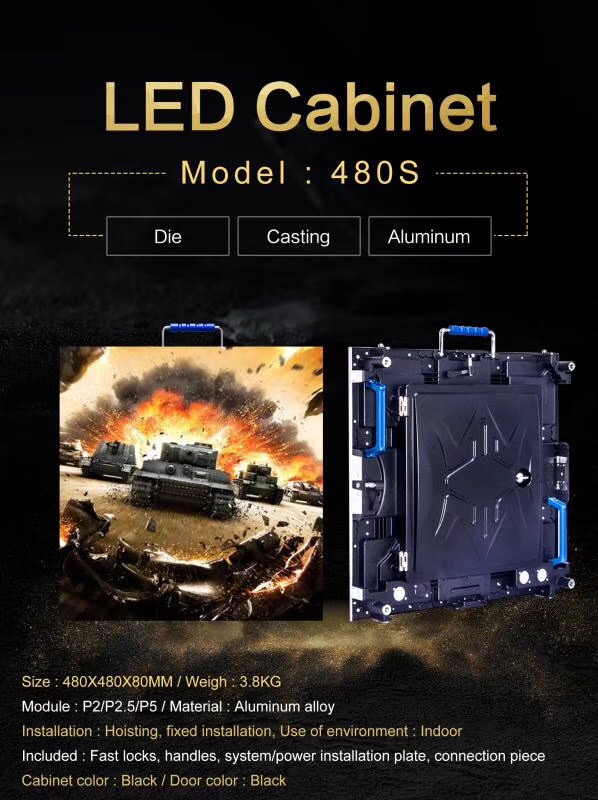

Physical pixel:2㎜	module size:128X128㎜	cabinet size:480×480×75（mm）
physical dots:250000dots/㎡	1R1G1B	module resolution64*64=4096DOTS
module weight - 0.2kg
cabient resolution 240*240	cabient space0.2304m²	cabinet weight 2.2KG±0.05KG
p2 indoor full color rental led video wall The main technical parameters
best view distance:2m～20m	Visual angle level≧160°optionl	vertical≥140°optional
Ave power consumption＜400W/㎡	Max power consumption＜800w/㎡	Control method: synchronous control
DVI	Drive mode：1/32scan	Change frequency ≧60Hz
refresh≧3840Hz optional	brightness ≧800cd/㎡	Frame change frequency≧50/60
brightness adjust	Drive IC：ICN2053/MBI5124	16degree adjust
Software manual adjustment: 100 adjustable 100
computer
WIN98、WINXP、WIN2000,etc
video singal
RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION etc
control system
PCTV card (optional optional) + DVI graphics card + main control card + fiber transmission (optional optional)
Mean time between failures ≧5000hours	span life75000～100000hours	Pixel out of control rate ＜0.0002 pcs
PH1.875	SMD	SMD1515
