P1.875 high resolution 3840hz refresh indoor rental led display video wall

P1.875-32S Main technical parameters of indoor LED display

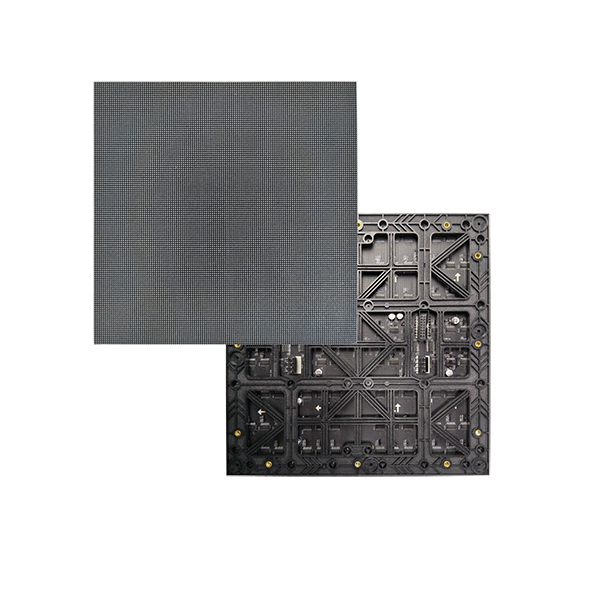

Physical pixel:1.875㎜	module size:240X120㎜	cabinet size:480×480×75（mm）
physical dots:284444dots/㎡	1R1G1B	module resolution128*64=8192DOTS
module weight - 0.27kg
cabient resolution 256*256	cabient space0.2304m²	cabinet weight 6.7KG±0.05KG
P1.875 high resolution 3840hz refresh indoor rental led display video wall The main technical parameters
best view distance:1m～28m	Visual angle level≧160°optionl	vertical≥140°optional
Ave power consumption＜400W/㎡	Max power consumption＜800w/㎡	Control method: synchronous control
DVI	Drive mode：1/32scan	Change frequency ≧60Hz
refresh≧3840Hz optional	brightness ≧1000cd/㎡	Frame change frequency≧50/60
brightness adjust	Drive IC：ICN2053/MBI5153	16degree adjust
Software manual adjustment: 100 adjustable 100
computer
WIN98、WINXP、WIN2000,etc
video singal
RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITION etc
control system
PCTV card (optional optional) + DVI graphics card + main control card + fiber transmission (optional optional)
Mean time between failures ≧5000小时	span life75000～100000hours	Pixel out of control rate ＜0.0002 pcs
PH1.875	SMD	SMD1010
